Foldable Back Rails for Portable Scales & Table Mount Kits for Weighing Consoles

Why Mounting & Portability Accessories Matter

A weighing scale is only as good as its stability and ease of use. An unstable platform leads to inaccurate readings, while a poorly positioned console causes operator fatigue and reduces productivity. Mounting accessories are often overlooked, but they are the foundation that ensures your scale delivers reliable, repeatable results day after day. Whether you need a scale that packs up and moves quickly, or a console that stays firmly anchored to a desk, the right physical support accessory makes all the difference.

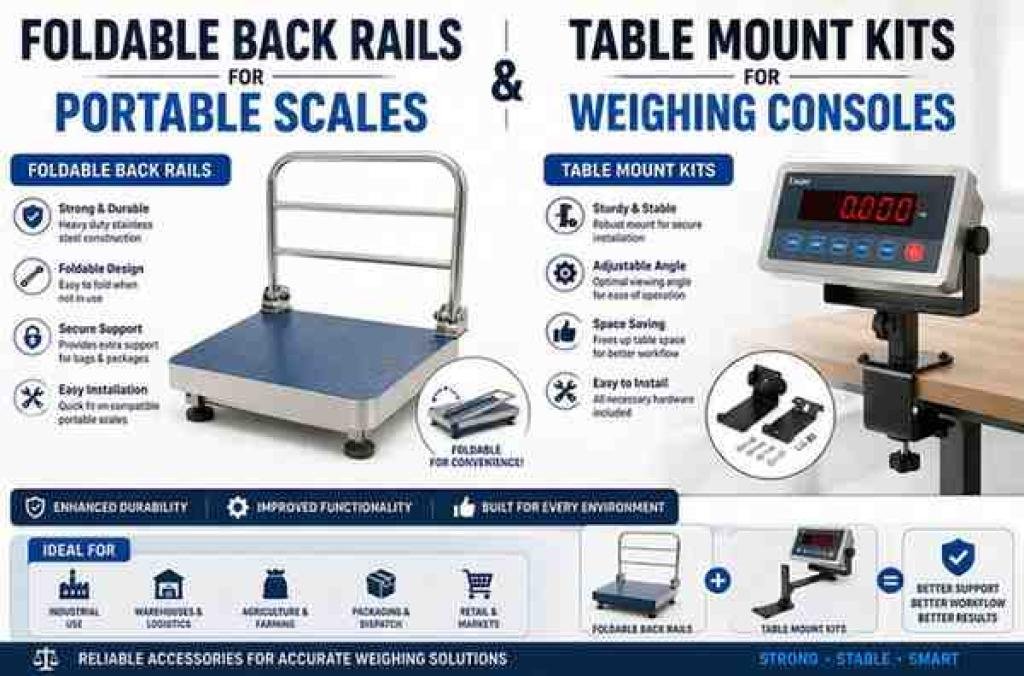

Accessory 1: Foldable Back Rails Assembly for Portable Scales – 400x400mm (U21611)

Portable weighing scales are essential for field service, mobile inspection teams, temporary production lines, and retail pop‑up stations. However, portability often comes with a trade‑off: stability. A scale that wobbles or shifts during weighing introduces errors and frustrates operators.

The Foldable Back Rails Assembly is designed specifically for portable scales with a platform size of 400x400mm. It is a detachable or foldable frame that attaches to the rear of the portable scale platform, providing a physical back‑stop and side guidance for the items being weighed.

Key Features & Benefits:

1. Folding Design for Easy Transport: Unlike fixed rails, this assembly folds down flat when not in use. This allows the scale to be packed into its carrying case or stored in a tight space without removing the rails entirely. It is a true "set‑up and pack‑down" solution for mobile weighing operations.
2. Enhanced Load Stability: The back rails act as a physical guide, preventing round or awkwardly shaped items from rolling off the back of the platform. They ensure that the load remains fully on the weighing surface, eliminating partial‑load errors that occur when an item overhangs the edge.
3. Quick & Tool‑Free Attachment: The assembly is designed for rapid installation and removal without the need for special tools. This is critical for field technicians who need to set up and dismantle weighing stations quickly at multiple sites.
4. Durable & Lightweight Construction: Built from robust materials that can withstand the bumps and knocks of mobile use, yet light enough not to add significant weight to the portable scale kit.
5. Consistent Positioning: By providing a fixed rear stop, the rails ensure that operators place the item in the same position on the platform every time. This consistency improves repeatability, especially when weighing multiple similar items in quick succession.

Compatibility:

This accessory is specifically designed for the DS‑215 Portable scale variant. The 400x400mm platform size is a standard footprint for portable bench and floor scales used in field applications.

Note: Because this is a physical mounting accessory, it is critical to match the platform size. It will not fit larger 450x550mm or 700x800mm platforms, which require different rail sizes.

Ideal Use Cases:

1. Field Service & Mobile Calibration: Technicians who travel to customer sites to perform on‑location weighing or calibration. The foldable rails allow rapid setup on uneven surfaces.
2. Temporary Check‑Weighing Stations: In warehouses or factories, portable scales with foldable rails can be moved to high‑traffic areas during peak seasons and stored away afterward.
3. Trade Shows & Demonstrations: Sales teams can set up professional‑looking weighing demonstrations with stable back rails, then fold them down for easy packing into a vehicle.
4. Agriculture & Livestock: Portable scales used for weighing feed bags, produce crates, or small animals benefit from the added stability and containment provided by the back rails.

Accessory 2: Table Mount Kit for SI‑850 Console (U24700)

The SI‑850 is a powerful, feature‑rich weighing console, but it is typically designed to sit on a flat surface. In many industrial and laboratory environments, counter space is at a premium, and a loose console can be knocked over, pulled off the desk by cable tension, or simply take up valuable workspace.

The Table Mount Kit is a dedicated hardware bracket system that securely attaches the SI‑850 console to the edge of a desk, workbench, or counter‑top. It elevates the console slightly, frees up surface area, and holds the unit firmly in place, creating a permanent or semi‑permanent installation.

Key Features & Benefits:

1. Space‑Saving Design: By mounting the console to the edge of the table, you reclaim the entire flat surface of the desk for paperwork, samples, or other tools. The console is held neatly out of the way yet remains fully accessible.
2. Ergonomic Viewing Angle: The mount positions the SI‑850 at an optimal tilt angle, reducing neck and eye strain for the operator. This is particularly beneficial for workers who spend hours reading the display and operating the keypad.
3. Secure & Anti‑Theft: Once mounted, the console becomes very difficult to accidentally knock off or unplug. For shared workspaces or public areas, the bracket adds a layer of physical security, preventing unauthorised removal.
4. Sturdy & Vibration‑Resistant: The heavy‑duty bracket clamps firmly to the table edge, reducing the transmission of table vibrations to the console. This protects the sensitive electronics and ensures stable readings when the table is bumped.
5. Cable Management: With the console securely mounted, cables can be routed neatly along the bracket and down the desk leg, reducing clutter and eliminating trip hazards.

Compatibility:

This table mount kit is exclusively designed for the SI‑850 console model. The bracket is contoured to match the specific mounting points on the SI‑850 chassis, ensuring a perfect fit without modifying the console.

Note: The mount is designed for standard desk/table thicknesses (typically up to 40‑50mm). Always check the clamp opening range against your table thickness before installation.

Ideal Use Cases:

1. Laboratory Workstations: Fixed installations where the weighing console must remain in a dedicated spot while multiple operators access it.
2. Retail Counters: The console is mounted securely on the counter edge, with the display facing the cashier and optionally a remote display facing the customer.
3. Production Floor Control Desks: In manufacturing, the console is mounted at the operator's workstation, keeping the desk clear for production records and tools.
4. Public Weighing Stations: Airports, baggage handling, or parcel shipping counters benefit from a securely mounted console that cannot be moved or damaged by customers.

Combined Applications: Stability & Ergonomics

While these two accessories serve different equipment types (portable scale vs. fixed console), they share a common goal: improving the physical interaction between the operator and the weighing system.

1. Foldable Back Rails (U21611) ensure that the item stays on the platform, reducing measurement errors caused by misplacement.
2. Table Mount Kit (U24700) ensures that the console stays in the right position for the operator, reducing fatigue and accidental damage.

Together with the connectivity and visibility accessories we have covered, these mounting and support items complete the ecosystem, ensuring that your weighing system is not just technically accurate, but also practically usable in real‑world conditions.

Installation & Maintenance Tips

1. Back Rails: When folding and unfolding the rails, check that the locking mechanisms engage fully. Loose rails can wobble and affect load positioning.
2. Table Mount Kit: Ensure the clamp is tightened sufficiently to hold the console firmly but not so tight that it damages the table edge. Periodically check the clamp screws for loosening due to vibration.
