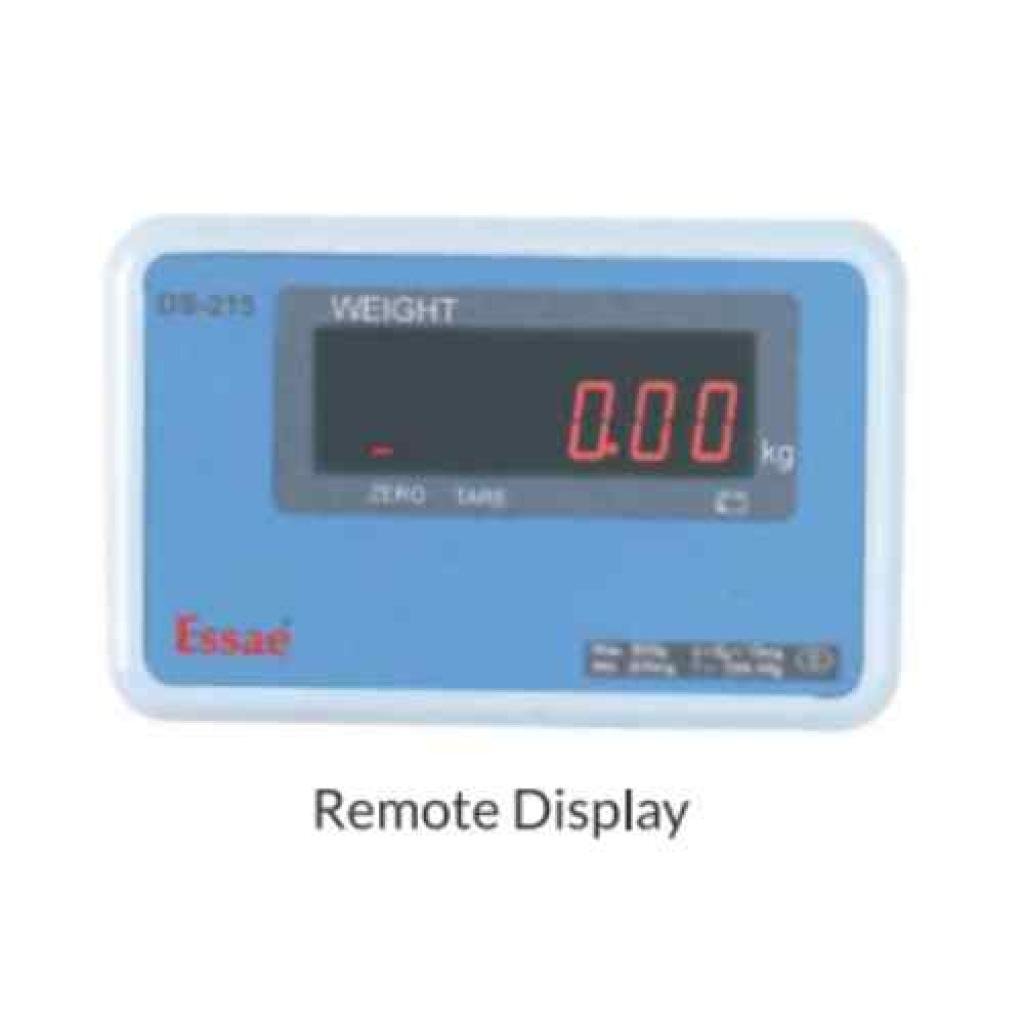

5 Meter & 10 Meter Red LED Remote Display for Industrial Weighing Indicators

Red LED Remote Displays – Long-Distance Weight Visibility (5M & 10M)

In busy industrial environments, the primary weighing indicator is often tucked away near the operator, making it difficult for supervisors, crane operators, or quality checkers to verify the weight from a distance. A long-range Red LED remote display solves this by mirroring the exact weight reading onto a highly visible auxiliary screen, positioned exactly where it is needed most.

These specific remote display assemblies, available in 5-meter (UD103) and 10-meter (U0001) cable lengths, are engineered for superior visibility in challenging lighting conditions. The Red LED technology offers a sharp, high-contrast readout that cuts through dust, glare, and low-light scenarios—making it the preferred choice for warehouses, foundries, and heavy-material handling zones.

Key Features & Applications:

1. Bright Red LED Technology: Red light provides excellent visibility even in broad daylight or dimly lit factory floors. The intense glow ensures the numbers are unmissable from several feet away, reducing eye strain for workers who constantly glance at the readout.
2. Extended Reach Options: Choose the 5-meter (UD103) for standard overhead mounting or the 10-meter (U0001) for massive platforms where the indicator must be housed in a separate control room, far from the actual weighing zone.
3. Rugged Auxiliary Display: Built as a self-contained assembly, this remote display acts as a perfect slave unit, eliminating the need for operators to crowd around the main console. It is designed to withstand the vibrations and dust typical of production floors.
4. Seamless Weight Data Transmission: The unit replicates the primary indicator’s data in real-time, ensuring zero latency between what the operator sees and what is displayed remotely. This is critical for batch processing, batching配料, and legal-for-trade applications where accuracy is paramount.

Compatibility Check:

This remote display assembly is specifically configured for single-display weighing systems within the DS-215 series (including models like DS-215N and DS-215HD Single Display).

Note: As per the technical specifications, this accessory is not offered for Dual Display variants. Always verify that your base indicator is a single-display unit before selecting this remote assembly.

Why Invest in an External Red LED Display?

1. Enhanced Workflow Safety: Keep the operator at the controls while giving a second set of eyes (or a camera) a clear view of the load weight, preventing overloading and miscommunication.
2. Transparent Operations: In logistics and dispatch, placing the remote display facing the driver or the crane hook creates an open, trust-based environment where everyone can see the verified weight instantly.
3. Flexible Installation: The 5M and 10M cable lengths provide versatile mounting options—whether you need to suspend it from the ceiling, attach it to a pillar, or mount it on a bracket facing the loading bay.

Who is this for?

This accessory is a must-have for businesses operating:

1. Floor-mounted platform scales where the display needs to be read while standing at a distance.
2. Overhead crane scales where the operator must see the weight while holding the load mid-air.
3. Heavy-duty weighbridges (in smaller capacities) where the console is fixed far from the weighing platform.

By adding a dedicated red LED remote display, you effectively split your visual interface into two stations, maximizing operational efficiency without upgrading the entire weighing system. Whether you require the standard 5M reach or the extended 10M coverage, this remote display assembly ensures that your weight reading is always visible, accurate, and reliable.
